The DuraUni V2 is a single layer neoprene coated glass duct with a copper coated steel spiral. Please click below to see the relevant data sheet.
Product Description

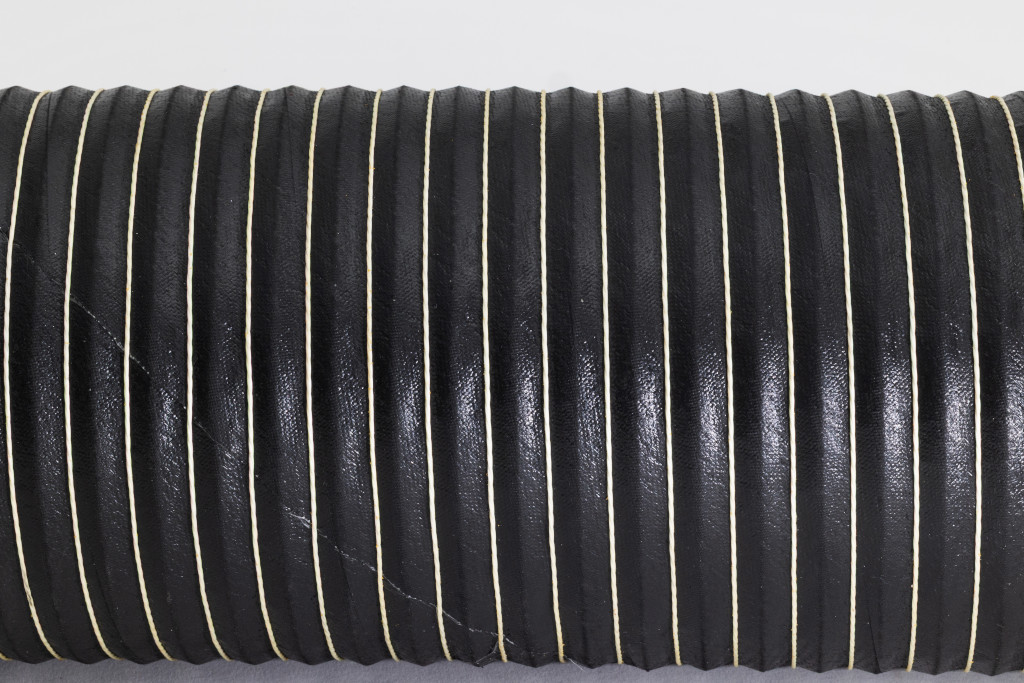

The DuraUni V2 is a super lightweight, single-ply neoprene & glass fibre fabric duct (200g/m2 100/100 layer), structured with a copper coated steel wire and finished with a single glass cord stabiliser. Due to the single ply construction, the internal spiral is visible on the inside of the duct. The product is CE certified and conforms to DIN4102B1 and NFP92501-M1 standards and is suitable for Automotive, Ship Building, Military, Aircraft and Aviation, Agricultural, Fume and Exhaust Extraction, Buidling Equipment, Industrial Vehicles, Turbines, Wind Turbine, Ventilation (HVAC), Railway, Granulate Processing, Printing Automation & General Industrial applications.
Technical Specifications
| Product Category | DuraUni V2 Standard |
| Application Medium | Non-corrosive medium to high temperature gasses |
| Pressure Res. Min/Max (mmWS/mmWG & bar) | - 0.530 bar to +1.500 bar |
| Duct Inside Diameter Min/Max (mm) | 10 mm to 407 mm |
| Duct Length Min/Max (mm) | 100 mm to 40,000 mm (up to 5x when spliced) |
| Temperature Tolerance Min/Max (°C) | -50°C to +150°C |
| Crush and Kink Proof | No |
| Interior Lining Structure | Visible internal spiral |
| Standard Cuff Type | Straight Cut |
| Static Properties | Antistatic, if spiral earthed. 10n6 |
| Magnetic Properties | Not Applicable |
| Flame Retardant | Yes |
Comparison Chart
| UNI V2 (this product) | UNI V2 Fri Standard | UNI V2 FRP Standard | |
| Inner Material | No Inner Material | No Inner Material | No Inner Material |
| Outer Material | Neoprene Coat. Glass | Neoprene Coat. Glass | Neoprene Polyester (heavy) |
| Insulation Material | No Insulation Material | Melamine Foam Basotec 6mm | No Insulation Material |
| Overlayer Material | No Overlayer Material | Neoprene Glass Fabric | No Overlayer Material |
| Spiral Material | Copper Coated Steel Wire | Copper Coated Steel Wire | Copper Coated Steel Wire |
| Cord Material | Single Glass Cord | Internal Single Glass Cord | Single Glass Cord |
| Applicable Norms | CE, DIN4102B1, NFP92501-M1 | CE | CE |
Optional Product Customisations
| Spiral Material | Polyamide (white) for added kink and crush resistance, Stainless Steel |
| Interior Lining | |
| Outer Cover | Anti-abrasion cover |
| Cuff Type (both ends) | 60mm total / 40 Wire free, each side |
* All technical parameters can vary due to raw material, ambient temperature and humidity and are subject to variation
